The texture may vary depending on the type of soap used. The texture of the foam can be adjusted by rotating the control dial. Spout will dispense foam that is generated by mixing air and foam soap. Rotate door counter-clockwise to close and lock in place. Lid will rotate open for filling dispenser with bulk foam hand soap only.
To fill dispenser, insert tip of standard BobKey provided into opening of the concealed locking mechanism in the SpoutĪssembly with spout body to disengage door for quick and easy top filling.
Refer to 824-307 Installation Instructions. Plug AC Adapter (6V AC adapter with US plug included) into wall and end plug into power port on bottom housing.ĭesigners Note: For sinks with rim over the counter area, ensure that rim does not come in contact with activation area. Minimum 18" (455mm) vertical and 5" (125mm) diameter clearance required for soapīottle and bottom housing below mounting hole. Recommended mounting location is between 6" to 8" (150 to 205mm) from back wall and 3" (75mm) from the sink Unit may be mounted through special hole requisitioned when lavatory is ordered from manufacturer (specify hole Unit is designed for installation into counters up to 2" (50mm) maximum thickness with 1-3/8" (35mm) diameter mounting Acceptable foam soaps need to have a viscosity of less than 100cPc. Dispenses commercially marketed all purpose bulk foam hand soaps and antibacterial foam soaps that are not alcohol or iodine based. LED light indicators show unit is ready for activation when they flash green, unit is in use when there are no indicators on, and flash red when an object remains in the activation zone after single activation.

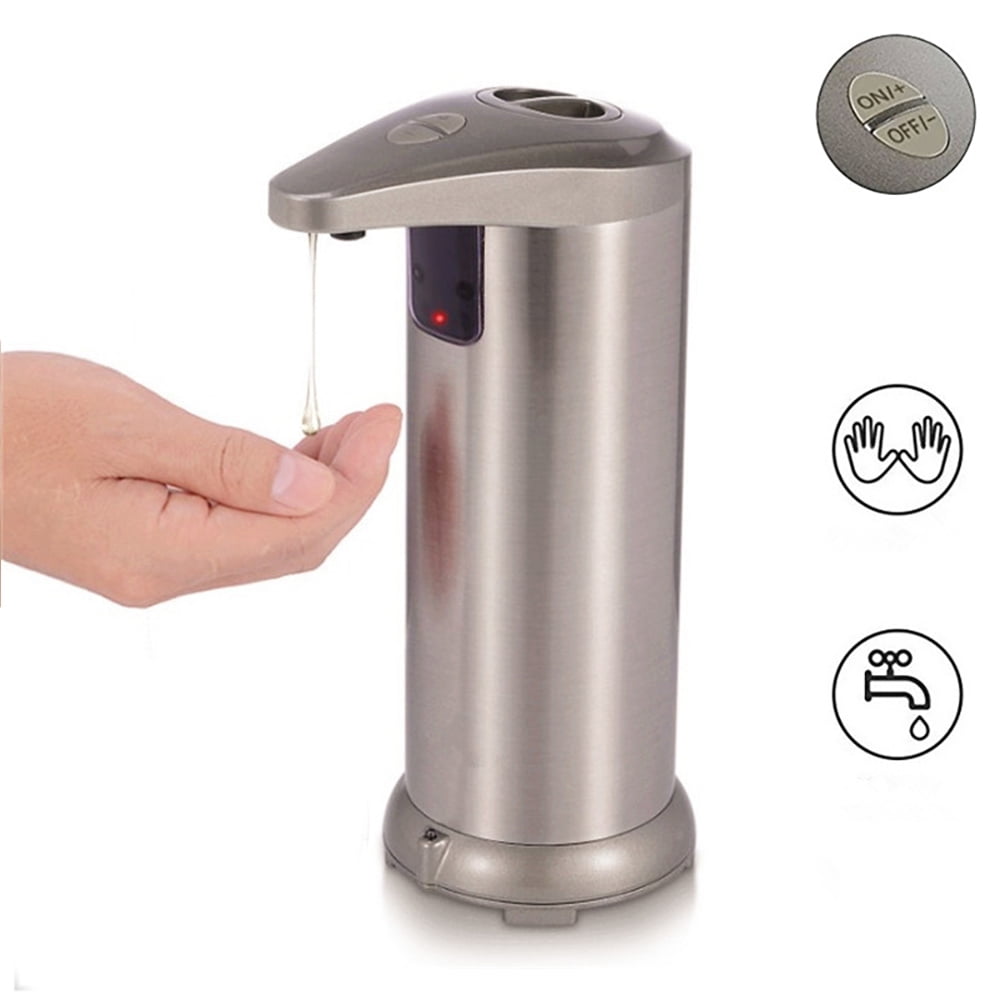

Brushed nickel automatic soap dispenser Pc#
A third plastic fiber optic cable connects an LED located on the PC board to an acrylic lens at the tip of the spout. The pair of fiber optic cables connects the plastic activation lenses to an IR sensor located on a PC board in the bottom housing. It includes a portion control knob, flush button to allow for system cleaning and maintenance, a connector for the fiber optic cables, and power port. The bottom ABS plastic housing is water resistant and houses the PC board, motor that drives the gear pump responsible for pumping soap through a vinyl tube to the spout, and the gear pump housing. Delrin stem connects to the translucent, shatter resistant high density polyethylene soap bottle. Integrated to spout are a grey plastic dispense tip and activation lens housing. The rotatable lid mechanism consists of metal components.
Unit is equipped with a spring loaded 180 degree rotatable lid with a concealed locking mechanism for top filling. Automatic foam soap dispenser has spout and stem assembly constructed in durable die cast zinc and is available in 5 finishes.
